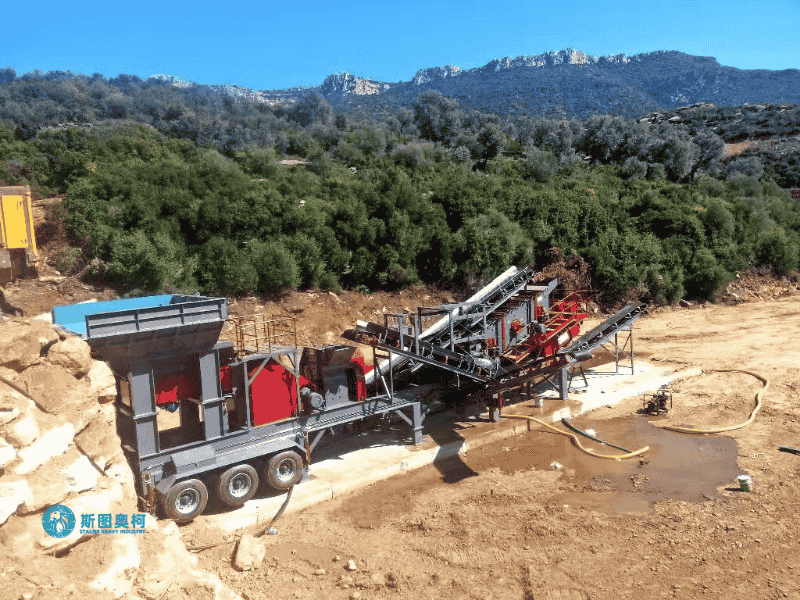

Portable Crusher Machine 50TPH 60TPH Stone Crusher Equipment

Mobile Portable Stone Crusher Equipment

1.Product Introduction

Mobile portable rock crushers typically consist of a crushing main unit (such as a jaw crusher, impact crusher, or cone crusher), a vibrating feeder, screening equipment (vibrating screen), a conveyor belt system, and a power unit (diesel engine or electric motor). These components are compactly mounted on a single or multiple towable tracked or wheeled chassis, forming a complete mobile production line. ‌

2.Application

Its applications are extensive, primarily covering the following fields:

• Construction and Roadwork Sites: On-site crushing of construction waste (such as concrete and bricks) or natural stone to directly produce recycled aggregates or graded materials required for engineering projects, reducing material transportation costs.

• Quarries and Mining Operations: Primary or secondary crushing at mining sites, particularly suitable for complex terrain or dispersed extraction points, enabling local processing.

• Urban Demolition and Redevelopment Projects: Rapid processing and recycling of construction waste generated during demolition within confined urban spaces.

• Emergency Projects and Remote Area Operations: Suitable for projects demanding high equipment mobility, such as post-disaster reconstruction and infrastructure development in remote regions, due to its rapid deployment capability.

3.Working Principle

• Feeding: Raw materials are conveyed into the vibrating feeder via loading equipment. The feeder uniformly and continuously transports the material to the feed inlet of the main crushing unit.

• Crushing: The material enters the crushing chamber. Depending on the type of main unit, different crushing methods are employed: Jaw crushers crush material through the periodic squeezing action of two jaw plates; impact crushers utilize a high-speed rotating rotor to impact the material; while cone crushers achieve compression crushing through the relative motion of inner and outer cones. The crushed material is reduced in size.

• Screening and Output: The crushed material is typically conveyed via a belt to an integrated vibrating screen for grading by particle size. Finished products meeting specifications are discharged through the conveying system, while oversized material can be returned for re-crushing, forming a closed-circuit cycle.

4.Advantages

• Exceptional Mobility and Flexibility: Equipment can be rapidly relocated and deployed directly to job sites, eliminating the complex infrastructure and long-distance material transportation required for fixed production lines. This significantly enhances project responsiveness and adaptability.

• Notable Cost Efficiency: On-site crushing substantially reduces raw material transportation costs and intermediate handling expenses. Simultaneously, it enables the on-site recycling of materials like construction waste, creating added value.

• Highly Integrated and Automated: The entire crushing and screening process is integrated into a single unit with centralized control systems. This reduces inter-equipment interfaces and manual intervention, simplifying operation and boosting production efficiency.

• ‌Environmentally Friendly and Adaptable: Many modern models feature dust suppression and noise reduction systems. Diverse power options (diesel, electric, hybrid) enable operation in both grid-connected and off-grid environments.‌

• ‌Relatively Low Investment Threshold: For small-to-medium or short-term projects, mobile equipment represents a more economical choice with lower initial investment compared to constructing fixed crushing plants.‌
